NEOLUX LOGO
Language
français
REQUEST A QUOTE
  1. Home
  2. >
  3. LED Flood Light
  4. >
  5. NR Model-LED Flood Light
  • Product
  • DETAILED FEATURES
  • TECHNICAL DATA

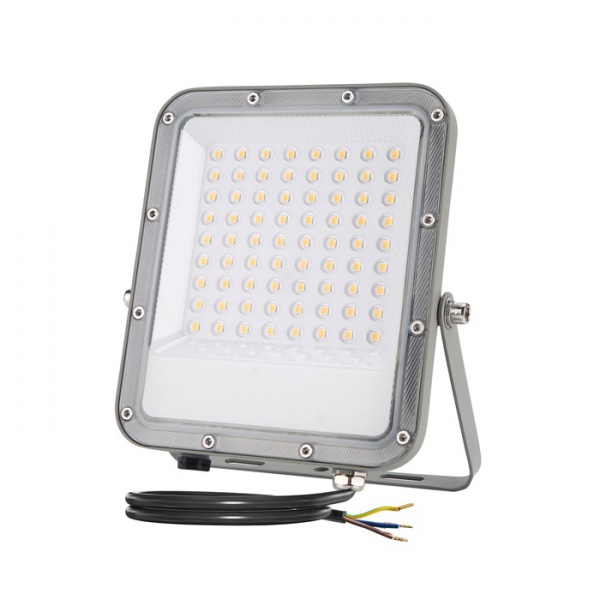

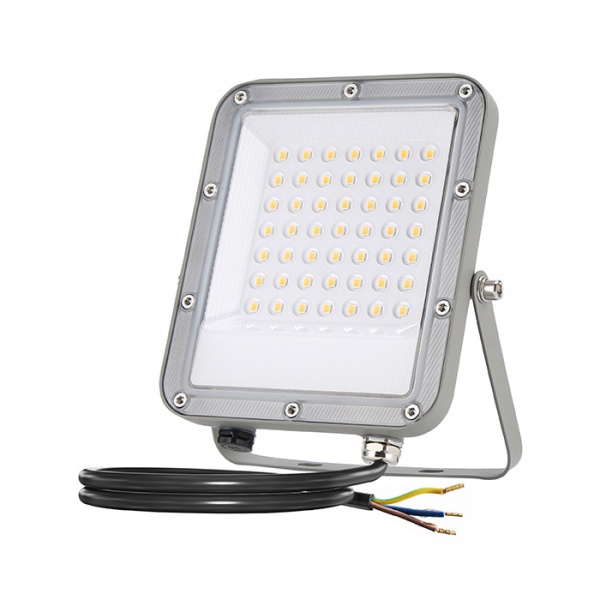

NR Model-LED Flood Light
NR Model-LED Flood Light
NR Model-LED Flood Light
NR Model-LED Flood Light

NR Model-LED Flood Light

IP Rating: IP65
Efficacy: 120 LM/W
Max Lumen Output: 18,000 LM
Angle: 90°
Range: 4 m
Class: Class I
CRI: ≥80
URL: ＜3%
IK: IK08

For a compliant ULR according to the regulation,
the tilt angle must not exceed 25° relative to
the horizontal.

NR Model-LED Flood Light

Select the number of specifications

Wattage Options

NR-30W NR-50W NR-100W NR-200W

Housing Color Options

Black Grey

CCT Options

3000K-Warm White 4500K-Natural White 6000K-Cool White

Please check the product information you want!
Specifications select

DETAILED FEATURES TECHNICAL DATA

SMD 2835 High-Brightness Chips

SMD 2835 High-Brightness Chips


Deliver strong light output, efficient heat dissipation, and outstanding color rendering. Well-suited for LED strips, downlights, and light panels, they provide dependable, vivid illumination along with excellent energy efficiency.

PC Optical Lens


A lightweight and robust material that provides exceptional transparency, UV resistance, and strong optical performance. Suitable for eyewear, lighting applications, and precision devices, it delivers dependable protection and long-lasting durability.

PC Optical Lens
Die-cast Aluminum Housing

Die-cast Aluminum Housing


Offers robust construction, long-lasting durability, and superior thermal dissipation. Its lightweight, corrosion-resistant design ensures dependable protection for electronic components, even in outdoor lighting systems and demanding environments.

IP68 Waterproof Breather Valve


Maintains stable internal pressure while blocking moisture intrusion, delivering dependable protection even in severe environmental conditions.

IP68 Waterproof Breather Valve


Model No.NR-30WNR-50WNR-100WNR-150W
Nominal Wattage30W50W100W150W
Nominal Volts220-240 VAC
Light BeadSMD2835 49pcsSMD2835 72pcsSMD2835 144pcsSMD2835 219pcs
Luminance Efficiency120Lm/W
Luminous Flux3600Lm6000Lm1,2000Lm1,8000Lm
Beam Angle90°
CRI80+
MaterialsDie-cast aluminium Housing + PC lens
IPRating IP65
Size (mm)159*26*160185*28*191225*29*236253*30*278

No comment

Previous : NE-Model LED Flood Light
DETAILED FEATURES
SMD 2835 High-Brightness Chips

SMD 2835 High-Brightness Chips


Deliver strong light output, efficient heat dissipation, and outstanding color rendering. Well-suited for LED strips, downlights, and light panels, they provide dependable, vivid illumination along with excellent energy efficiency.

PC Optical Lens


A lightweight and robust material that provides exceptional transparency, UV resistance, and strong optical performance. Suitable for eyewear, lighting applications, and precision devices, it delivers dependable protection and long-lasting durability.

PC Optical Lens
Die-cast Aluminum Housing

Die-cast Aluminum Housing


Offers robust construction, long-lasting durability, and superior thermal dissipation. Its lightweight, corrosion-resistant design ensures dependable protection for electronic components, even in outdoor lighting systems and demanding environments.

IP68 Waterproof Breather Valve


Maintains stable internal pressure while blocking moisture intrusion, delivering dependable protection even in severe environmental conditions.

IP68 Waterproof Breather Valve


TECHNICAL DATA
Model No.NR-30WNR-50WNR-100WNR-150W
Nominal Wattage30W50W100W150W
Nominal Volts220-240 VAC
Light BeadSMD2835 49pcsSMD2835 72pcsSMD2835 144pcsSMD2835 219pcs
Luminance Efficiency120Lm/W
Luminous Flux3600Lm6000Lm1,2000Lm1,8000Lm
Beam Angle90°
CRI80+
MaterialsDie-cast aluminium Housing + PC lens
IPRating IP65
Size (mm)159*26*160185*28*191225*29*236253*30*278
NR Model-LED Flood Light
IP Rating: IP65
Efficacy: 120 LM/W
Max Lumen Output: 18,000 LM
Angle: 90°
Range: 4 m
Class: Class I
CRI: ≥80
URL: ＜3%
IK: IK08

For a compliant ULR according to the regulation,
the tilt angle must not exceed 25° relative to
the horizontal.
